Linear ball bearing .. EXC / EXCE

with / without self-alignment / compact series

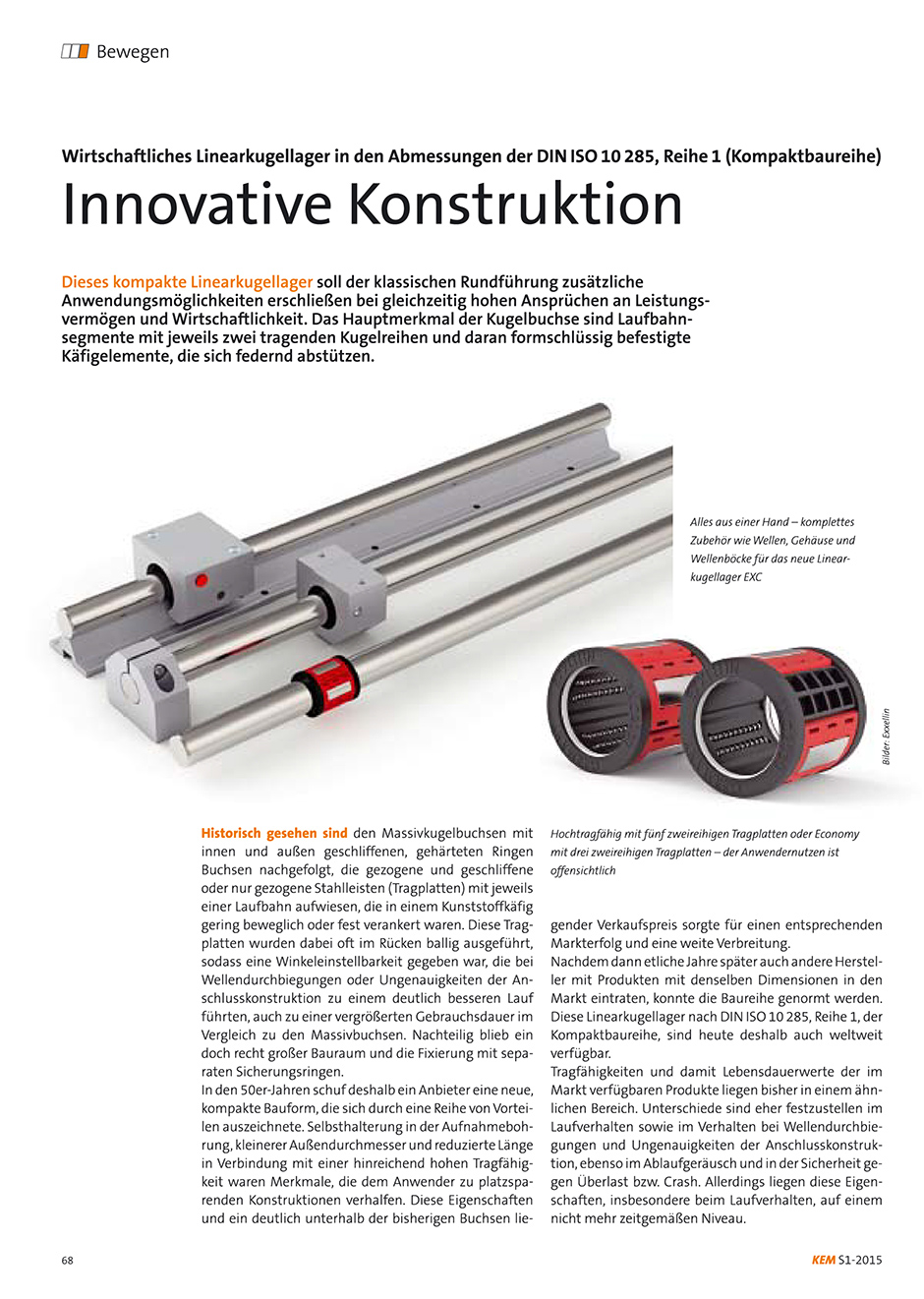

Linear ball bearing

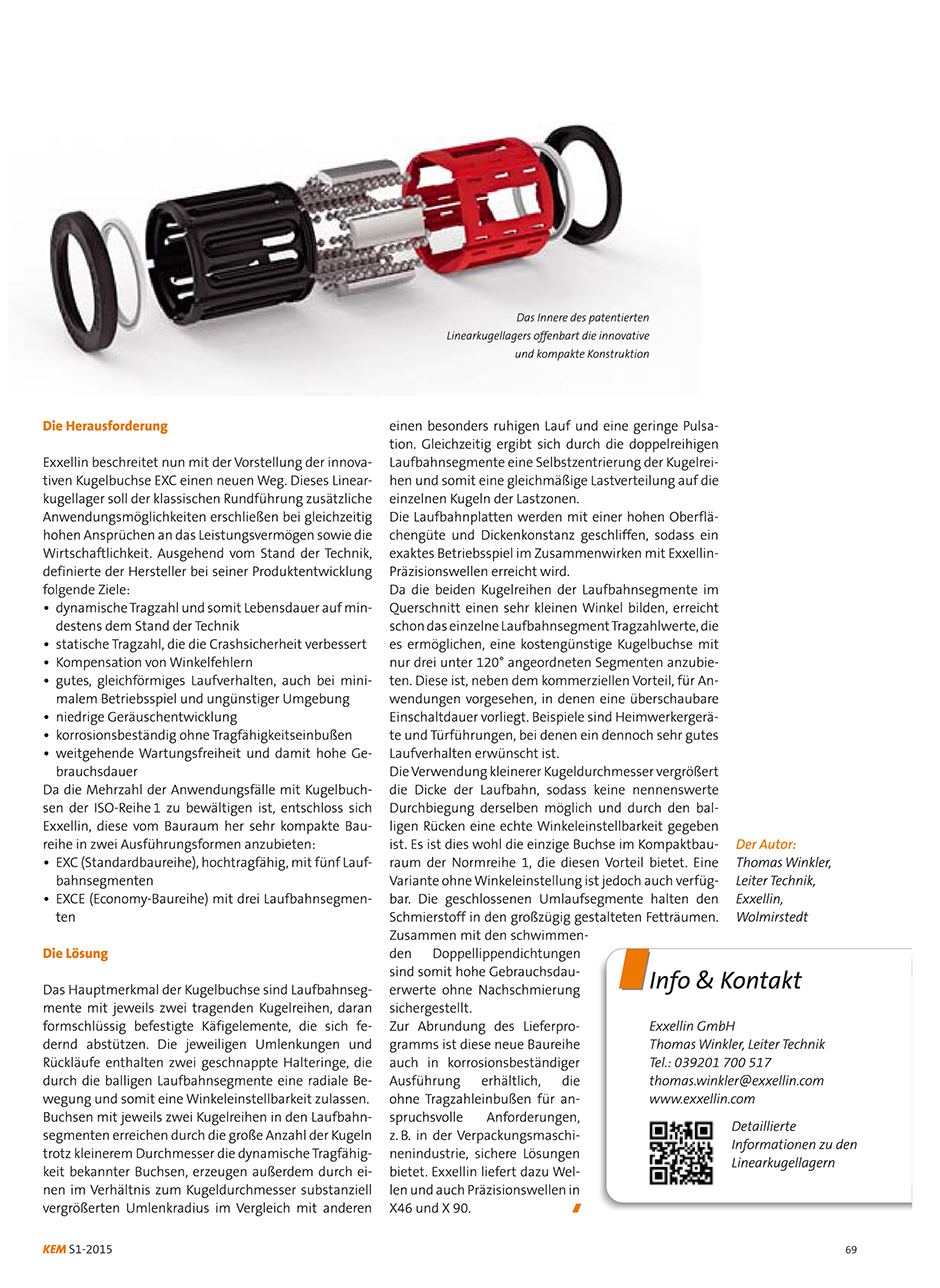

Linear ball bearings of the compact series EXC and EXCE comprise a plastic cage, steel bearing plates, steel balls and wipers. The dimensions are in accordance with DIN ISO 10 285 series 1.

Innovations

As first linear ball bearing of the compact series according to DIN ISO 10 285 series 1, this new product range comprise double track bearing plates and offers a self-aligning feature option.

  • the double track bearing plates are centering the ball tracks to the shaft that results in uniformly loaded balls
  • due to the unique production process of the double track bearing plates and optimized ball diameters, the bearing shows an extraordinary and smooth running characteristics
  • this new design concept in compact dimensions allows high speed and acceleration with minimal pulsation and low friction
  • the self-aligning feature allows the bearing to absorb misalignment up to ±0,5° without impact on travel life

Corrosion resistance

If corrosion resistance is required, the option -RB provides stainless steel bearing plates as well as stainless steel balls. In combination with hardened stainless steel shafts the load capacities have to be reduced.

EXC (standard series, high load capacity)

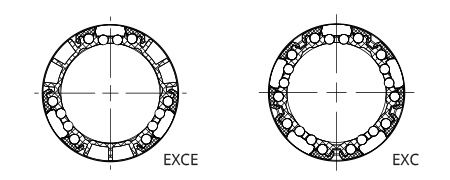

  • 5 self-centering double track bearing plates are equally arranged in peripheral direction
  • also available with self-aligning feature (suffix F)

EXCE (economy series)

  • 3 self-centering double track bearing plates are equally arranged in peripheral direction
  • the so called tripod effect has a positive impact on the bearing running characteristics
  • also available with self-aligning feature (suffix F)
  • most economic solution suitable for many applications

EXC-EXCE

Dimensions (mm) Load capacity Weight
Typ Ø d Ø D L dyn. C
N
stat. C0
N
Gew
g
EXC12 12 19 28 866 757 11,4
EXC16 16 24 30 1224 1086 17,9
EXCE20 20 28 30 1094 855 14,8
EXC20 20 28 30 1362 1204 20,7
EXCE25 25 35 40 2061 1675 30,5
EXC25 25 35 40 2575 2397 44,3
EXCE30 30 40 50 2539 2221 44,3
EXC30 30 40 50 3423 3541 68,7

Ordering designation

  • the load capacities are valid only if hardened (min. 670 HV) and ground shaft raceways are used
  • 1) only for EXC(E) .. F
